400
EAW Cinema Series CSC 723 Three-Way LCR
EAW CR72i Surrounds
QSC Amplification
Ashly Protea Processors
5.1 and 7.1 Film Mixing/Dubbing
Mixing Console – Dual Operator Avid ICON D-Control w/MultiMode Capabilities
3 X Pro Tools HD Accel allows for up to 576 tracks, expandable to 8 systems/1,536 tracks
Yamaha MGP32X 32-Input Hybrid Digital/Analog Mixing Console
Live recording with up to 24 microphone inputs.
Rental Audio System (available on request) at additional charge.
D&B V8 loudspeaker NL4
D&B V-SUB 18″ Subwoofer NL4
D&B B22 Dual 18″ Subwoofer NL4
A&H 24ch Digital Mixer
A&H 16in 8out Stage Box
Plus microphone package and in-ear monitor system
Jazz or Soft Rock:
D&B Y10P Loudspeaker
K&M Speaker Distance Pole
D&B V-SUB 18″ Subwoofer NL4
A&H 24ch Digital Mixer
A&H 16in 8out Stage Box
Plus microphone package and in-ear monitor system
Classic AVID Digidesign control surface for dual operators
Latest ProTools Ultimate
Two M1 Max chip MacStudios
Dolby 5.1/7.1 theatrical mixing environment

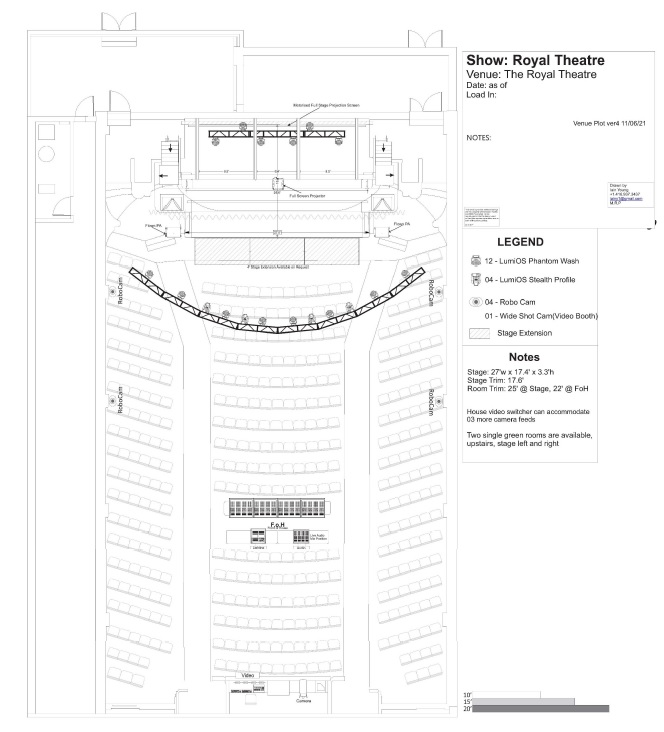

The Royal has an upstage and downstage truss. There are options to fly a mid-stage truss at an additional cost.
The in-house fixtures comprise of 18 – LED automated wash fixtures and 04 – LED automated profile fixtures. sACN control is installed, venue lighting desk is Obsidian software and tactile control surface. The system is configured for additional lighting if required.
Approximate Screen Dimensions – 30’ X 15’
Christie Digital CP2000 2k 4:4:4 Projection
Matte white zero-gain cinema screen
Non-Linear HD and SD Quicktime capabilities
35mm Film Projection
Dolby Digital Cinema Package player (DCP), 35mm Film (Dolby Digital), Blu-Ray, DVD, Quicktime, Suite-to-Theatre straight from Avid or Final Cut Pro.
There are two office spaces for production with full internet access, complete with large desk, couch, and chairs.There are two small dressing rooms, stage left and stage right. Each features a shower, dressing table, lighted vanity, and washroom. There is an option for a large dressing room at the front of the theatre.
The Royal has an in-house video system consisting of 04 – robo cameras, 01 – remote camera, switcher, (Note: The switcher has the capacity for 3 additional cameras), full video and audio recording abilities, fully compatible internet streaming. Motorized upstage full stage screen (26’w x 17’h) with compatible wide-angle projector mounted in proscenium arch allowing for unobtrusive video playback.
