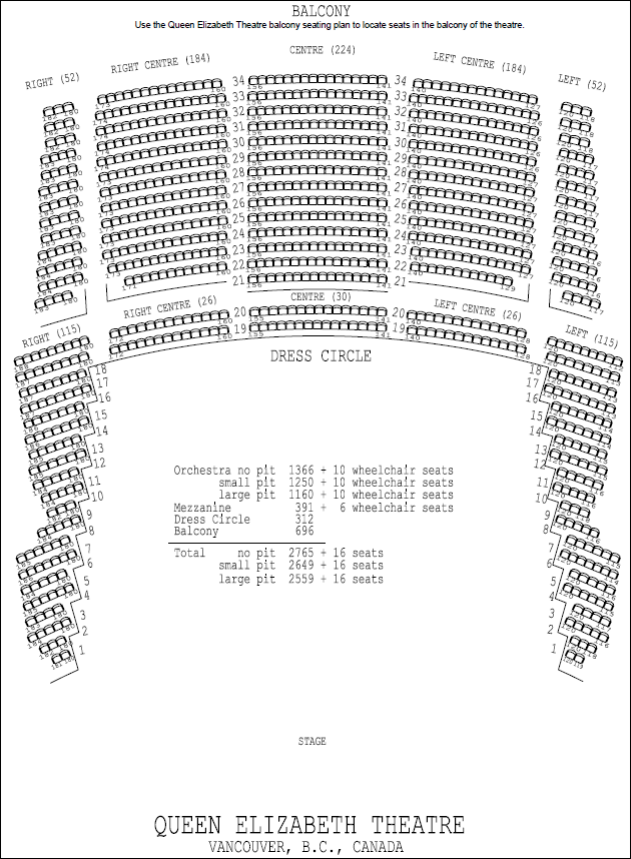

Seated: 2,765
A Left-Right-Centre - Meyer Mica / M’elodie line array system (8x mica / 5x M’elodi per side, 12x M’elodie in center cluster)
8 x HP700 subs (6x mounted above proscenium + 2 x on deck when needed)
4 x UPA + 7x M1D front fills
Patching facilities exist to allow control of this system through touring mixer
HEARING ASSIST
PORTABLE SPEAKERS
4 x Meyer Monitor UP100 Wedges
4 x Meyer UPA Portable Speakers / Stage Monitors (2x hung as DS side-fills and 2x portable)
4 x Meyer UPM-1 (These are permanently mounted in the wings 2x SL and 2x SR to act as monitors)
AVID Venue S6L 24D (E6L-144 Engine)
Console I/O is 8 Analog in 8 Analog Out and 8 in/out standard AES
Stage Rack for the FOH desk is 64 In / 24 Analog Out
Waves card is in this desk
3 x Meyer Galileo for signal processing
AVID Venue S6L 32D (E6-112 Engine)
Console I/O is 8 Analog in 8 Analog Out and 8 in/out standard AES
Stage 64 Monitor Rack is 48 In / 8 Analog Out
NO CD PLAYER
2 x Channel Clear-com to all operating stations with the master 4 channel station at stage manager’s location (downstage right)
Portable stations are available
4 x Wireless com packs
8 x Shure SM58
5 x Shure SM57
1 x Shure Beta91
4 x AKG C451 (plus 2 CK8 shotgun capsules)
6 x AKG C414 XLS (flat response 9 patterns)
4 x Earthworks P30/C (choir mics)
1 x Neumann KM 143
18 x Neumann KM 184
6 x Neumann KM 185
4 x Neumann KMS 105
2 x Schoeps No. 139007 (stereo Set CMC 6+ MK5 (adjustable patterns / matched pair)
4 x Sennheiser MD 421-II
2 x Sennheiser MKH416 Shotgun
1 x Sennheiser e902
2 x Sennheiser e914
4 x Sennheiser e904
6 x Sennheiser e906
4 x Radial JDI
6 x Radial J48
2 x Cable Factory DI-Pro P1
1 x Cable Factory DI-Pro PC
STAGE WIRELESS MICS
3 x Shure Axient AD4Q Quad receivers with 12 x Shure AD2 / KSM8 Handheld transmitters (max 12 channels from the options below)
12 x Shure AD1 Bodypacks with TA4 connector
10 x Oscar Sound Technologies HM 701 Headset mic with TA4F connector
4 x Oscar Sound Technologies Tl40 Lav mic with TA4F connector
2 x DPA 4060 Lav (Black)o 8x Instrument cables with TA4F connectors
LOBBY WIRELESS MICS
1 x Shure ULXD4 single receiver with Shure ULXD2/ SM58 Handheld transmitter
CABLES & STANDS
Assortment
PRO TOLLS/AUDIO RECORSING RIG
128 channel Avid Pro Tools recording rig located on an Apple Mac Pro rack mounted Tower
Directly integrated with the S6L via AVB
AUDIO BOOTH
LIGHTING CONSOLES
Full tracking back-up (EOS RPU3)
2 x 20 sub-master wing
Dual monitor designer remote video station (EOS RVI3)
Full function tablet remote (RFR) or use of the app on a phone
24567 channels / 24567 outputs
DIMMERS/CIRCUITS
2.4 Kw - Stage Pin
288 - Front of House (Catwalks)
168 - Front of House (Box Booms and Balcony Rail)
535 - Onstage
6 - Follow Spot Booth
6 - House Projection Booth
5 Kw - Stage Pin
8 - Front of House (Catwalks)
12 - Front of House (Box Booms and Balcony Rail)
20 - Onstage
CONTROL
Front of House Mix Position
House Lighting Booth
Down Stage Right
Down Stage Left
Spot Booth, Alcove Left & Right, Catwalk #1, #2, and #3, Eyebrow Slot, Balcony Rail, Box Boom Left & Right #1, #2, #3, Proscenium slot Left & Right, Stage Left & Right ladders, CYC Lights, Ground Row
Also includes portable equipment, miscellaneous gear, and atmospheric gear (hazer & fan); Stage House Lighting Hang.
One rehearsal room, eight single dressing rooms, off stage right
Green room (fridge and microwave), downstairs
Wardrobe room (washers, dryers, steamers, ironing board, irons, steamers), downstairs
Guest promoter & production offices, off stage right
Security room, downstairs
**all have wifi
CAMERAS
2 x Blackmagic Design URSA Broadcast 4K cameras (mounted permanently on robo heads on either side of our lighting and audio control booths)
3 x Blackmagic Design URSA Broadcast 4K cameras with tripods, studio packages and Canon 20X, 40X and 90X lenses (one each)
1 x Canon CR-N500 4K PTZ camera with tripod
1 x Marshall CV420-CS 4K compact camera w. 3.8-16mm len
1 x Blackmagic Design Micro Studio house camera (permanent wide shot of stage, from balcony rail)
PROJECTORS
1x Panasonic PT-RZ21K 3-chip, 20000 lumen laser projector broadcasting in Full HD ((This projector is normally for the Plaza. Please confirm availability) different lenses available))

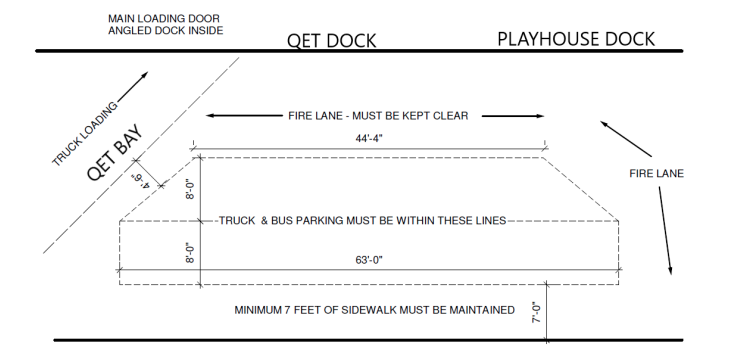

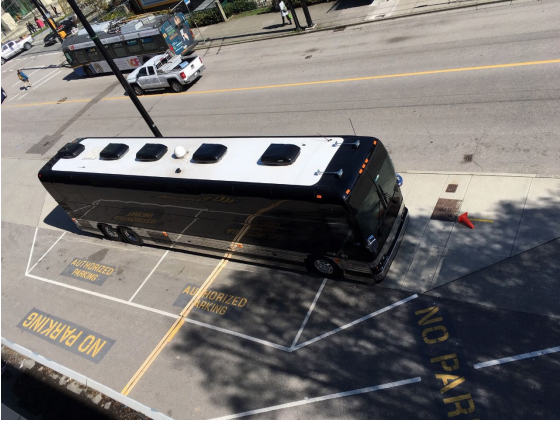

Two roll up doors 20' wide x 16' high; two loading bays (one main angled bay and one right angled bay for 40' tractor trailers); with access to stage and basement to dressing rooms. Trucks cannot remain in loading bay once unloaded.
Street parking is controlled by city of Vancouver, can obtain street parking permit & permit information.
